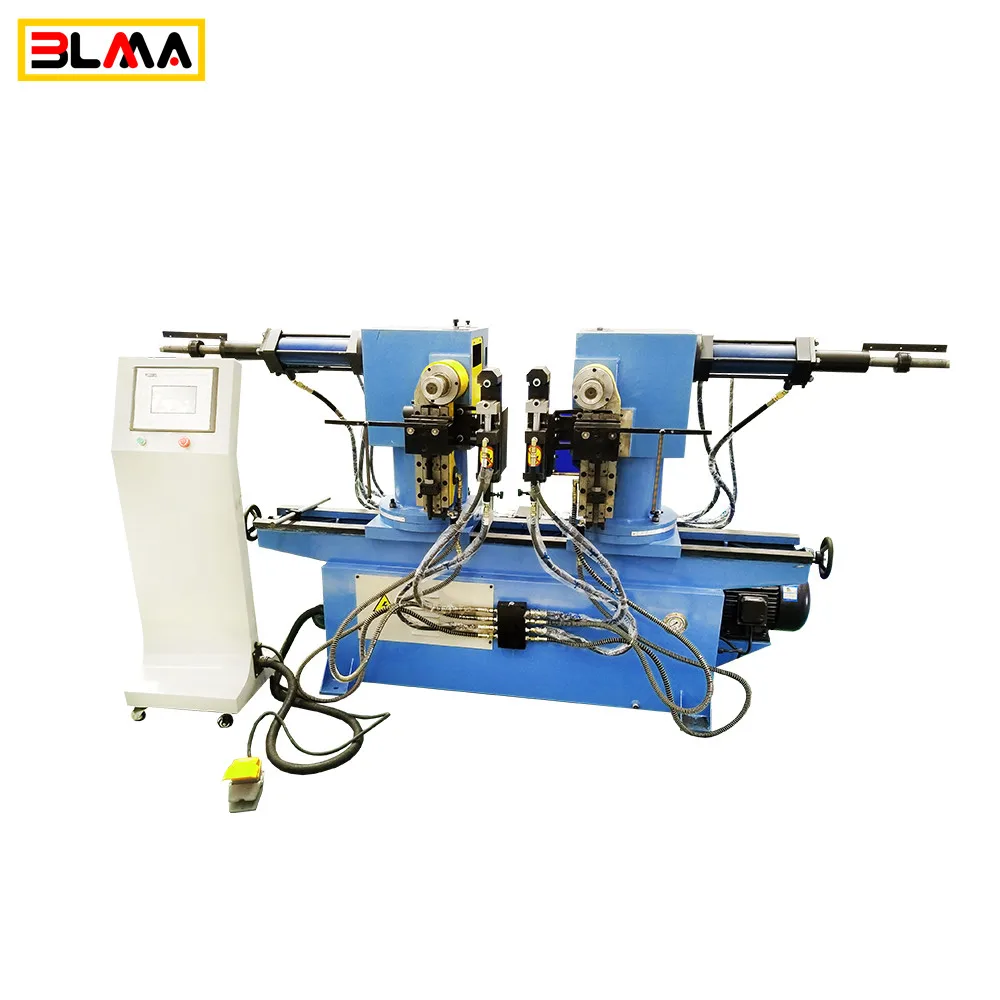

Aluminum plumbers galvanized 20mm 25mm gi thin wall ss double head tube and pipe bender supplier

  • 1 - 1 Sets
    $4,500.00
  • >=2 Sets
    $4,300.00
Max. Tube Diameter (mm):
50
Lead Time:
Quantity(Sets) 1 - 1 >1
Est. Time(days) 15 Negotiable
Customization:
Customized logo (Min. Order: 1 Sets)
Customized packaging (Min. Order: 1 Sets)
Report Suspicious Activity
Overview
Quick Details
Material / Metal Processed:
ALLOY, Brass / Copper, Carbon Steel, Stainless Steel, Aluminum
Condition:
New
Bending Radius (mm):
1 - 50
Max. Bending Angle (Deg):
180
Bending Precision (Deg):
Place of Origin:
Jiangsu, China
Brand Name:
BLMA
Automation:
Semi-automatic
Extra Services:
Machining
Certification:
ce
Power (kW):
5.5
Weight (KG):
1400
Warranty:
1 Year
After-sales Service Provided:
Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Online support, Video technical support
After Warranty Service:
Video technical support, Online support, Spare parts, Field maintenance and repair service
Applicable Industries:
Manufacturing Plant, Farms
Key Selling Points:
Competitive Price
Local Service Location:
Australia, Sri Lanka, Romania, Bangladesh, Viet Nam
Showroom Location:
South Korea, Sri Lanka, Bangladesh, Viet Nam
Marketing Type:
Ordinary Product
Machinery Test Report:
Provided
Video outgoing-inspection:
Provided
Warranty of core components:
1 Year
Core Components:
Bearing, Motor, Pump, PLC, Pressure vessel
Machine Type:
Pipe and Tube Bending Machine
Raw Material:
PIPE
Product Name:
pipe bending machine
Max bending OD:
38.1mm
Max bending thickness:
2mm
Max bending radius:
R150mm
Electrics:
France Schneider
Hydraulic valves:
Japan Yuken
Toolings material:
42CrMo
Color:
customized
Supply Ability
Supply Ability:
200 Set/Sets per Month
Packaging & Delivery
Packaging Details
Double head pipe bending machine is packed with a standard exported case.
Port
Shanghai
Lead Time :
Quantity(Sets) 1 - 1 >1
Est. Time(days) 15 To be negotiated
Video Description
Aluminum plumbers galvanized 20mm 25mm gi thin wall ss double head tube and pipe bender supplier
Products Description

Specifications

1. According to different base frame, it can be divided into standard type and rotary type. 2. Hand-operated, auto, semi-circulation and other functions can be chosen. 3.PLC control, imported electric elements. The program can be stored forever, no losing. 4. Foot switch has auto start, emergency stop, emergency-stop and going on function, it has high safety. 5. Double head can be used separately. 6.Three pieces can be bent at one time.

Main features

Our double head pipe bending machine uses the microcomputer control: operates easily ,performance stable,double-end curving synchronization shapes work piece of the bent pipe opens ,the angle is precise, Double-end curving angle may adjust from0-180,but must consider the material-taking problem.May establish two ases different angles to be curved .
Max bending capacity
Ø50.8mmx3mm
Max bending radius
R200mm
Min bending radius
According to pipe diameter
Max bending degree
180°
Control system
NC control
Motor power
7.5Kw
Max hydraulic pressure
12Mpa
Oil tank capability
150L
Measurement
3500X1050X1600mm
Weight
4500kg

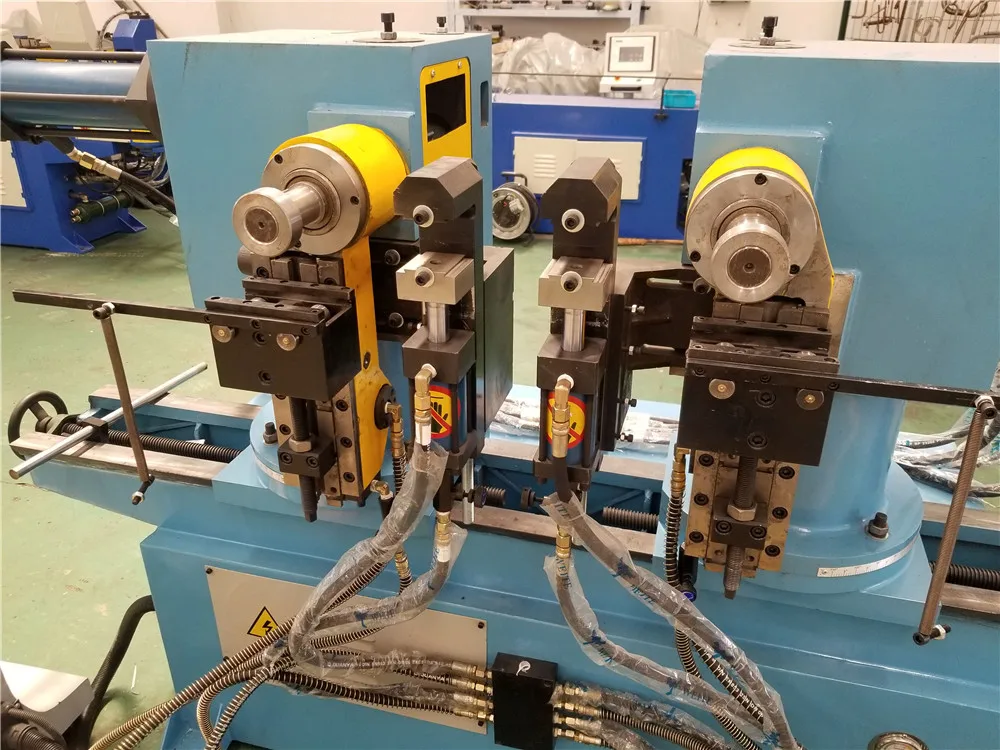

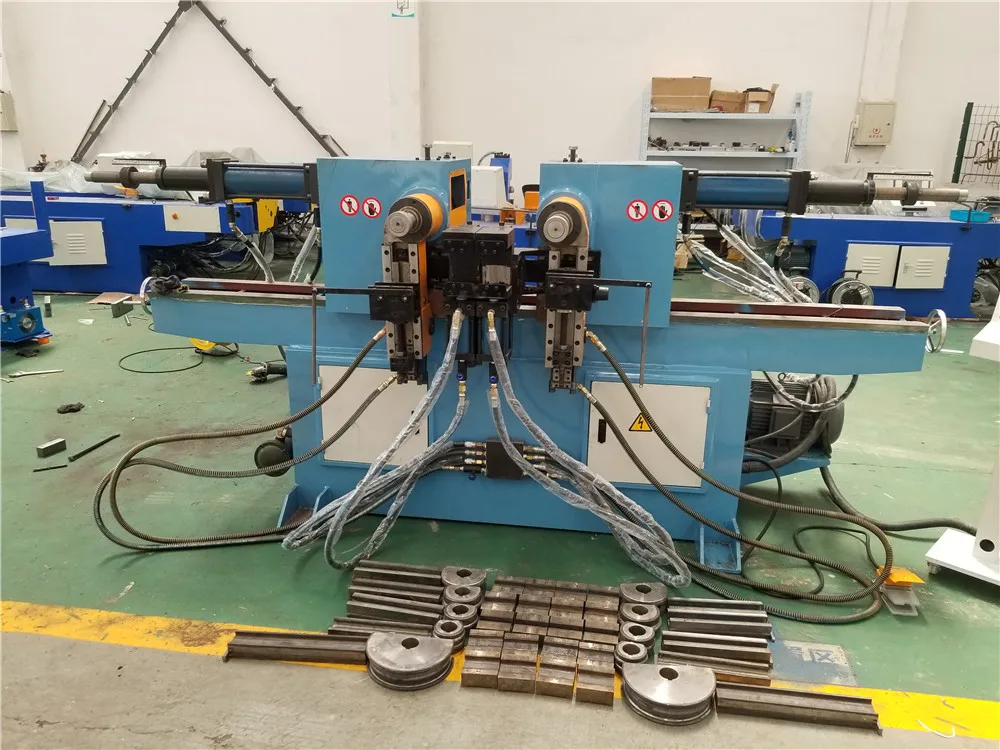

Details Images
Recommend Products
Our services

Pre-service

1.We will help you confirm the model of our machine according to your offered pipe information.
2.You are very welcome to see our machine how to work in the factory before you place an order
with us.

Aftersales-service:

1. Our machine is easy to use. Operation manual and teaching video will be sent out with machine. We also offer free training in our factory, the following is our training contents: Detailed function of our machine, 1 hour; NC control using, 0.5 hour; Tooling installation and adjustment, 0.5-1 hours; Maintenance and repair, 0.5-1 hours; Real operation according client products, 1-2 hours. During the training period,we offer free pick-up,hotel and food.
2. We guarantee machine quality for 13 months, during this period, if spare parts of the machine are not man-made damage, we can send the component to the customer by DHL, TNT freely.
3.Our factory provide the service for the customer forever, if the customer need operation help,we
provide 24 hours on-line reply service.

Company Profile
Exhibition&Customer visit
FAQ
1. How to choose the Pipe Bending Machine?
You have to inform us following details:
- Max. outside diameter
- Wall thickness range
- Bending radius (CLR)
- The pipe material
- The drawings if possible


2.Do you provide any training to make sure our user can operate the machine very well?
1)We will provide detailed video and instruction book for this machine;
2)We also offer training in our factory to all the clients,and we will arrange everything for you during these days in our city, to make sure every client will be the expert in using our machine!

3. How long warranty can you provide?
Our machine warranty is one year,and we use all the stable compoenents with long working life!
And we can also send our technician to do the after-sale service in client's factory!

4.What kind of solution you can offer to make sure your pipe bending machine can do our job?
1)We will help you confirm the model of our machine according to your offered pipe information.
2)Before you start the order for this big value machine,you can offer your workpiece drawing to us.
We can design the tooling to make your products in our workshop,after you are sure that the workpiece is good,then we can confirm the order finally.
3)You can visit us to check how to bend your product before you start the order.During this period, you can also learn how to use this machine well!
