Dw38cnc 75 90 small 125 mm 100mm square cnc tube pipe bending machines prices
Hot sale products
Hot sale in
-
>=1 Sets
$4,200.00
- Max. Tube Diameter (mm):
- 38
- Lead Time:
-
Quantity(Sets) 1 - 1 >1 Est. Time(days) 15 Negotiable
- Customization:
-
Customized logo (Min. Order: 1 Sets)Customized packaging (Min. Order: 1 Sets)
Product Details
Company Profile
Overview
Quick Details
- Material / Metal Processed:
-
Brass / Copper, Carbon Steel, Stainless Steel, Aluminum
- Condition:
-
New
- Max. Bending Angle (Deg):
-
180
- Bending Precision (Deg):
-
1
- Place of Origin:
-
China
- Brand Name:
-
BLMA
- Automation:
-
Automatic
- Extra Services:
-
Machining
- Certification:
-
ce
- Power (kW):
-
4
- Weight (KG):
-
2500
- Warranty:
-
1 Year
- After-sales Service Provided:
-
Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Online support, Video technical support
- After Warranty Service:
-
Video technical support, Online support, Spare parts, Field maintenance and repair service
- Applicable Industries:
-
Manufacturing Plant, Farms
- Key Selling Points:
-
Competitive Price
- Local Service Location:
-
South Korea, Romania, Ukraine, Canada, United Kingdom, United States, Viet Nam
- Showroom Location:
-
South Africa, United Kingdom, Viet Nam
- Marketing Type:
-
Ordinary Product
- Machinery Test Report:
-
Provided
- Video outgoing-inspection:
-
Provided
- Warranty of core components:
-
1 Year
- Core Components:
-
Bearing, Motor, Pump, PLC, Pressure vessel
- Machine Type:
-
Pipe and Tube Bending Machine
- Hydraulic motor power:
-
4kw
- Max bending diameter:
-
38mm
- Max wall thicness:
-
2mm
- Max bending radius:
-
R180mm
- Max bending angle:
-
190°
- Max feeding length:
-
2200mm
- Machine weight:
-
1500kg
- Machine size:
-
3860X720X1230mm
- Item:
-
CNC Pipe Bending Machine with Mandrel Tube Bender Air Plane Parts
Supply Ability
- Supply Ability:
- 100 Set/Sets per Month
Packaging & Delivery
- Packaging Details
- pipe bending machine with mandrel packing: Exported standard wooden case of each set.
- Port
- Shanghai
- Lead Time :
-
Quantity(Sets) 1 - 1 >1 Est. Time(days) 15 To be negotiated
Online Customization
Video Description

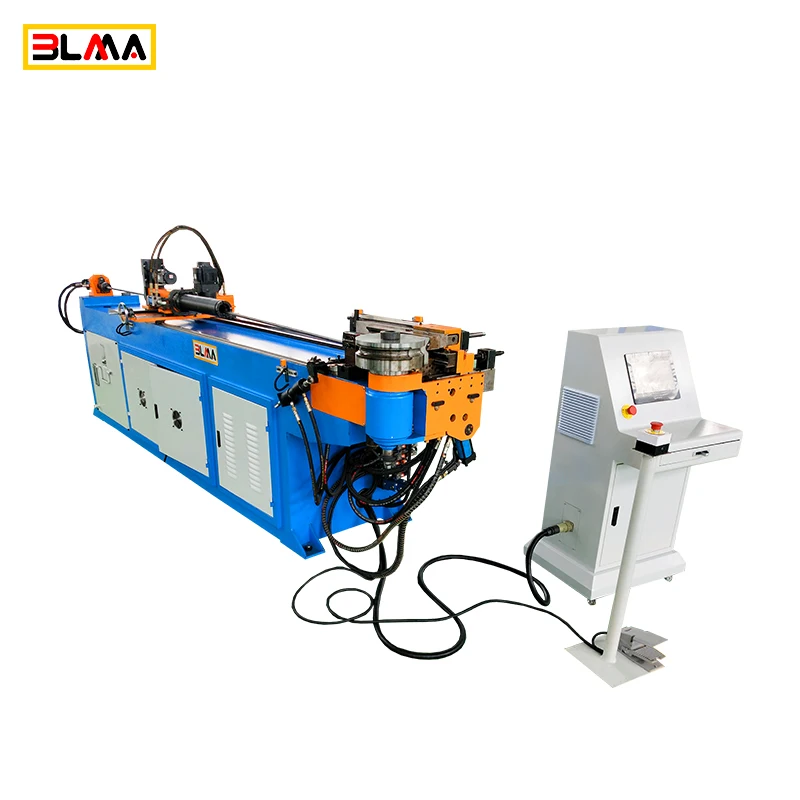

Dw38cnc 75 90 small 125 mm 100mm square cnc tube pipe bending machines prices

Products Description
Main features
* Fully automatic and CNC pipe bending machine
* Equipped with 2 servo motor programmable axis
* Feeding: servo motor drive; Rotation: servo motor drive
* Bending: hydraulic and encoder control; Servomotor with reducer.
* Imported hydraulic system and PLC(standard) unit or IPC(optional).
* Automatic lubrication system for moving areas.
* Self-diagnostic system, detecting the error immediately.
* Multiple groups pipe-bending information storage.
* Electric cabinet cooling fan and the hydraulic cooling system ensure the equipment long-time work stably under the high temperature.
* Touch screen and human/machine interface control provide user friendly operations.
Max bending capacity | Ø38mmx2mm |
Max bending radius | R180mm |
Min bending radius | According to pipe diameter |
Max bending degree | 190° |
Max effective distance of mandrel | 2200mm |
Feeding method | Direct feeding/clamping feeding |
Bending speed | Max 150°/s |
Rotary speed | Max 200°/s |
Feeding speed | Max 1000mm/s |
Bending accuracy | ±0.1° |
Rotary accuracy | ±0.1° |
Feeding accuracy | ±0.1mm |
Information inputting method | Working value (Y, B, C) |
Bending method | Hydraulic |
Hydrualic motor power | 4kw |
Rotary servo motor power | 0.75kw |
Feeding servo motor power | 1kw |
Max storage unit (3) | 1000 groups |
Max oil pressure | 12Mpa |
Machine weight | 1500kg |
Machine size | 3860 x 720 x 1230mm |

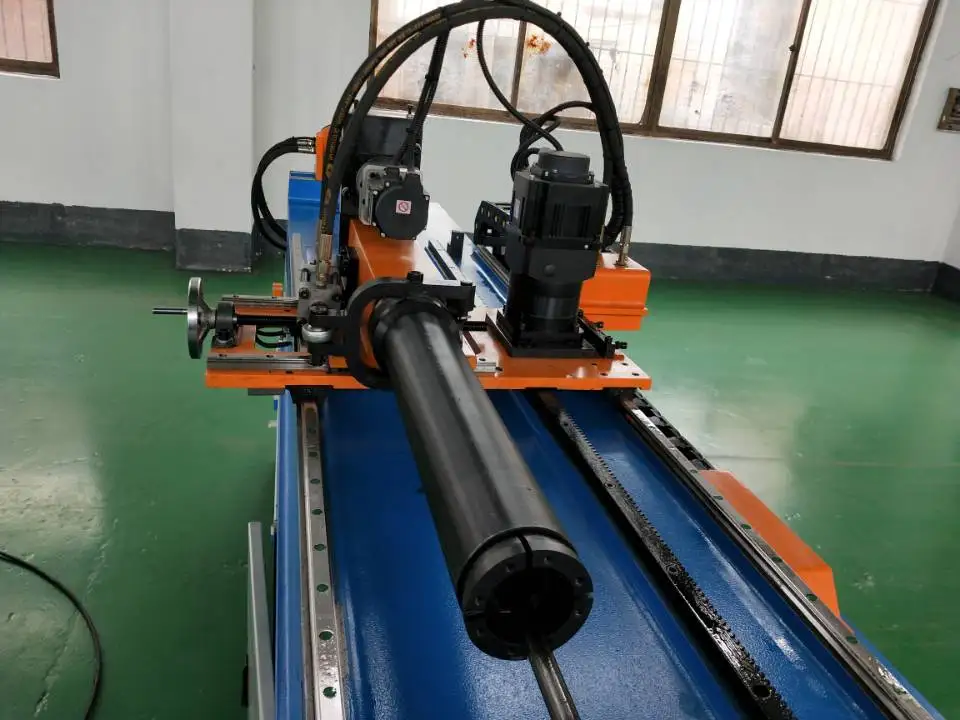

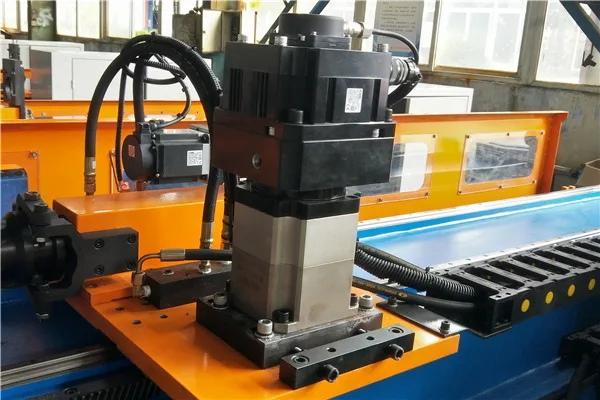

Mitsubishi Servo Motor
The feeding and rotary are drived by servo motor. It is with high efficiency, accurate bending angle and feeding.

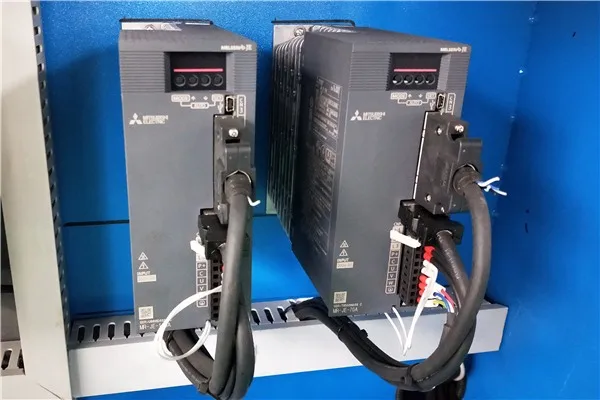

Mitsubishi Servo Driver
Bending pipes with servo motor power, high precise bending angle and compensation value.

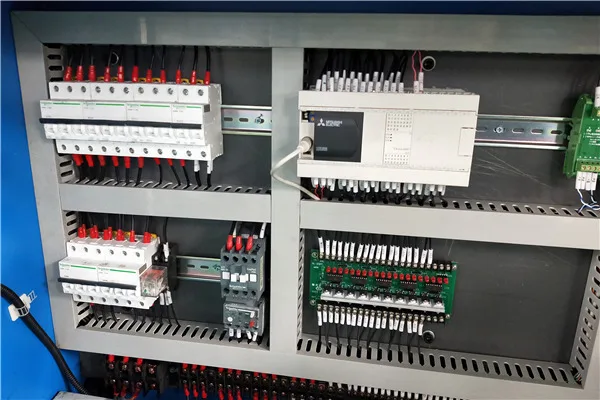

Electrics
Schneider, France brand

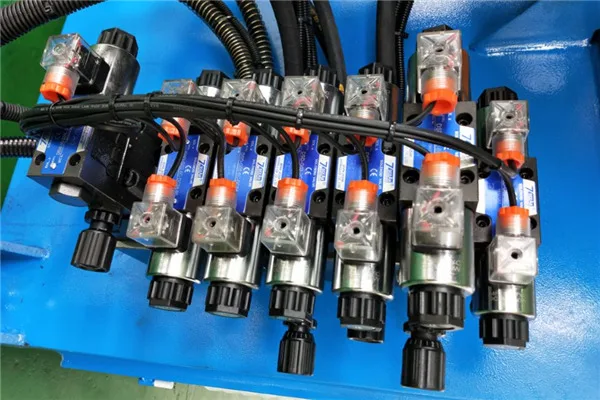

Valve
7 Ocean, Taiwan brand


Air cooler
Ensure the stability of the machine for a long time

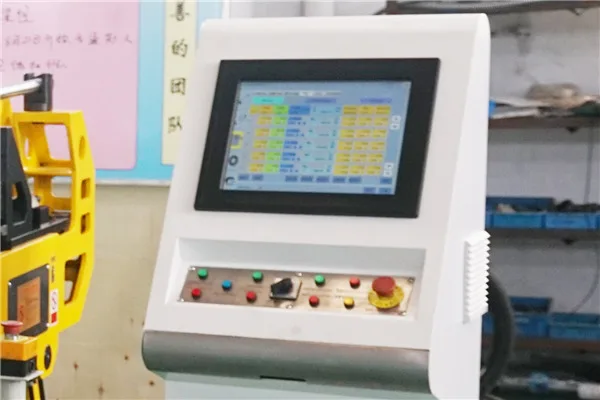

PLC Controller
A pipe per bending all individually preparing five action sequence and 10 sections of speed, allows the operator to match the use, improve work efficiency, reduce the fitting interference

Details Images




Bending sample

Recommend Products
Our services
Pre-service
1.We will help you confirm the model of our machine according to your offered pipe information.
2.You are very welcome to see our machine how to work in the factory before you place an order
with us.
with us.
Aftersales-service:
1. Our machine is easy to use. Operation manual and teaching video will be sent out with machine.
We also offer free training in our factory, the following is our training contents:
Detailed function of our machine, 1 hour;
NC control using, 0.5 hour;
Tooling installation and adjustment, 0.5-1 hours;
Maintenance and repair, 0.5-1 hours;
Real operation according client products, 1-2 hours.
During the training period,we offer free pick-up,hotel and food.
2. We guarantee machine quality for 13 months, during this period, if spare parts of the machine are not man-made damage, we can send the component to the customer by DHL, TNT freely. 3.Our factory provide the service for the customer forever, if the customer need operation help,we
provide 24 hours on-line reply service.
provide 24 hours on-line reply service.
Company Profile












FAQ
1. How to choose the Pipe Bending Machine?
You have to inform us following details:
- Max. outside diameter
- Wall thickness range
- Bending radius (CLR)
- The pipe material
- The drawings if possible
2.Do you provide any training to make sure our user can operate the machine very well?
1)We will provide detailed video and instruction book for this machine;
2)We also offer training in our factory to all the clients,and we will arrange everything for you during these days in our city, to make sure every client will be the expert in using our machine!
3. How long warranty can you provide?
Our machine warranty is one year,and we use all the stable compoenents with long working life!
And we can also send our technician to do the after-sale service in client's factory!
4.What kind of solution you can offer to make sure your pipe bending machine can do our job?
1)We will help you confirm the model of our machine according to your offered pipe information.
2)Before you start the order for this big value machine,you can offer your workpiece drawing to us.
We can design the tooling to make your products in our workshop,after you are sure that the workpiece is good,then we can confirm the order finally.
3)You can visit us to check how to bend your product before you start the order.During this period, you can also learn how to use this machine well!
You have to inform us following details:
- Max. outside diameter
- Wall thickness range
- Bending radius (CLR)
- The pipe material
- The drawings if possible
2.Do you provide any training to make sure our user can operate the machine very well?
1)We will provide detailed video and instruction book for this machine;
2)We also offer training in our factory to all the clients,and we will arrange everything for you during these days in our city, to make sure every client will be the expert in using our machine!
3. How long warranty can you provide?
Our machine warranty is one year,and we use all the stable compoenents with long working life!
And we can also send our technician to do the after-sale service in client's factory!
4.What kind of solution you can offer to make sure your pipe bending machine can do our job?
1)We will help you confirm the model of our machine according to your offered pipe information.
2)Before you start the order for this big value machine,you can offer your workpiece drawing to us.
We can design the tooling to make your products in our workshop,after you are sure that the workpiece is good,then we can confirm the order finally.
3)You can visit us to check how to bend your product before you start the order.During this period, you can also learn how to use this machine well!
